ติดตั้ง Board KB32-FT บนโปรแกรม Arduino IDE

เนื่องจาก Board KB32-FT ใช้โมดูล WROOM-32 จึงสามารถติดตั้ง Board "ESP32 Dev Module" แทนได้เลย

1.ติดตั้ง Broad ESP32 Dev Module ลงบน Arduino IDE

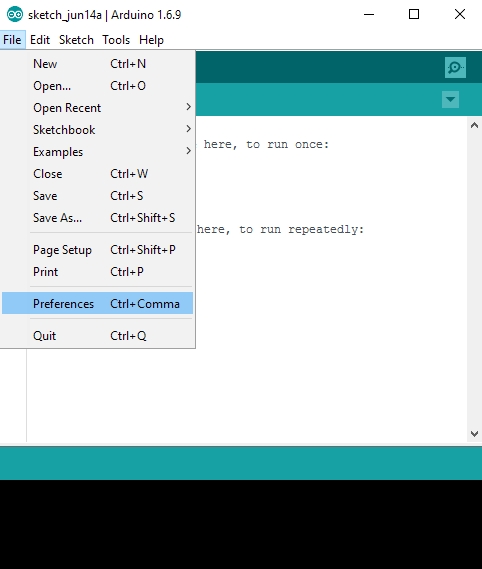

เข้าเมนู File >> Preferences
  • จะขึ้นหน้าต่าง Preferences ให้สังเกตุในช่อง Additional Board Manger URLs: หน้าต่าง Preferences

    ในส่วนของ Additional Board Manger บทความนี้ผมจะใช้ Boards Manager ของ Community ESP32

แนะนำให้ใช้ Stable Version

  • ใส่ URL >> ลงใน Addition Board Manager URLs: ดังนี้

https://raw.githubusercontent.com/espressif/arduino-esp32/gh-pages/package_esp32_index.json
  • วาง Link ลงใน Boards Manager URLs:

    จากนั้นกด OK

  • ไปที่ Menu Tools >> Boar: “Arduino…” >> Board Manager…

  • เลือก Boards Manager...

  • จะขึ้นหน้าต่าง Boards Manager เลือก Type เป็น Contributed หน้าต่าง Boards Manager

    • จะแสดง Boards ของ ESP32 เลือกเวอร์ชัน 1.0.3 หรือใหม่กว่าในอนาคต Boards และกด Install

    Install Board ESP32

Download Boards ESP32

  • แล้วรอ สัก 2-3 ครู่ ตัวโปรแกรมจะโหลด Boards ESP32 ให้ ขนาดไฟล์ประมาณ 150 MB และติดตั้งให้เอง

เมื่อเราติดตั้งบอร์ด ESP8266 เสร็จเรียบร้อยแล้ว ให้ปิดโปรแกรม Arduino IDE ก่อน แล้วจึงเปิดขึ้นมาใหม่

  • เมื่อเปิดโปรแกรม Arduino IDE ขึ้นมาใหม่แล้ว ให้ลองเลือกไปที่ Menu Tools >> Board: “…..” ซึ่งจะพบว่า มี Menu สำหรับเลือกใช้งาน ESP32 กับ Arduino IDE ขึ้นมาให้เลือกใช้งานแล้วครับ

Board ESP32 ถูกเพิ่มเข้ามา

ซึ่ง หมวดของ ESP8266 Modules นั้นจะมีบอร์ดให้เลือกใช้งานอยู่ด้วยกันหลายบอร์ด ที่มีจำหน่ายทั่ว ๆ ไป เช่น

  • ESP32 Dev Module

  • ESP32 Wrover Module

  • TTGO T1

  • Nano32

  • Node32s

  • NodeMCU-32S

ซี่งนี้ที่นี้เราเบือกบอร์ด เพื่อใช้งานบอร์ด KB32-FT

ESP32 Dev Module
